Overview

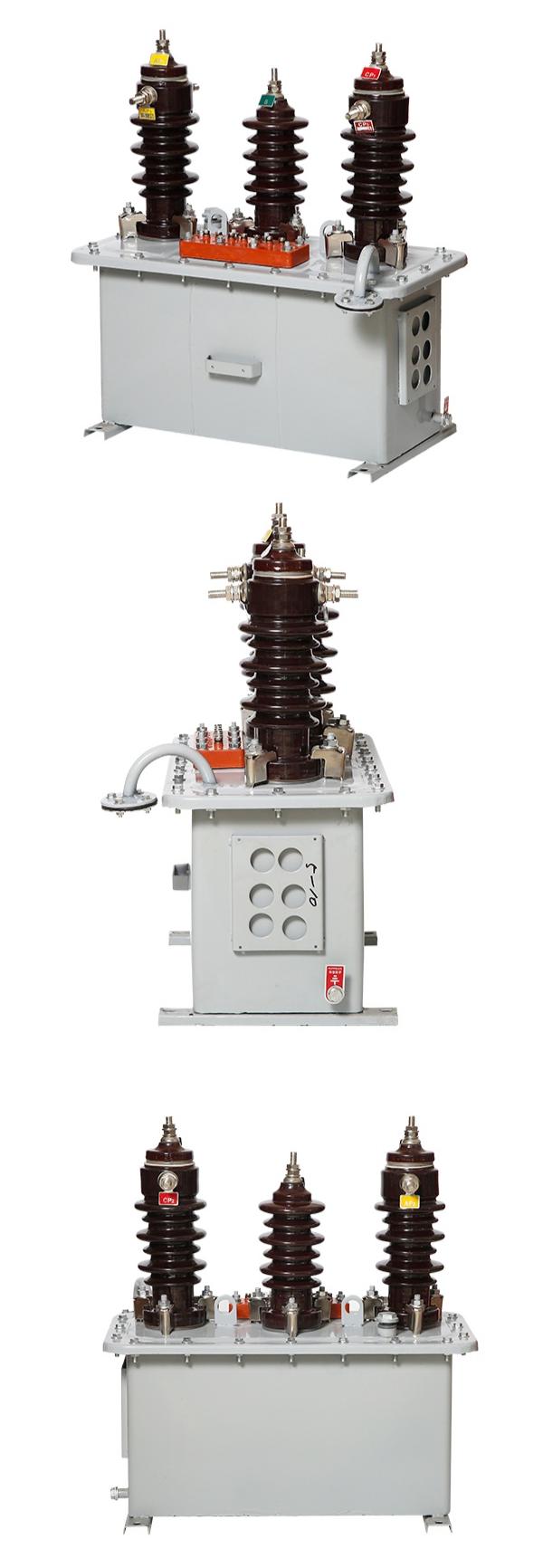

NEO-JLS-6/10 is an outdoor oil-immersed combined transformer (metering tank) for 6/10kV, 50/60Hz systems. It uses two PTs in V/V connection and two CTs on phases A/C, for current, voltage and energy metering. Moisture-proof design extends service life; compact, lightweight, easy to install.
Technical Data
Parameter | Specification |
Model | NEO-JLS-6 / NEO-JLS-10 |
Rated Voltage | 6kV / 10kV |
Frequency | 50/60 Hz |
Accuracy Class | 0.2 / 0.2S |
Standard Compliance | GB20840.4-2015, GB20840.2-2014, GB20840.3-2013 |
Insulation | Oil-immersed |
Installation | Outdoor |
