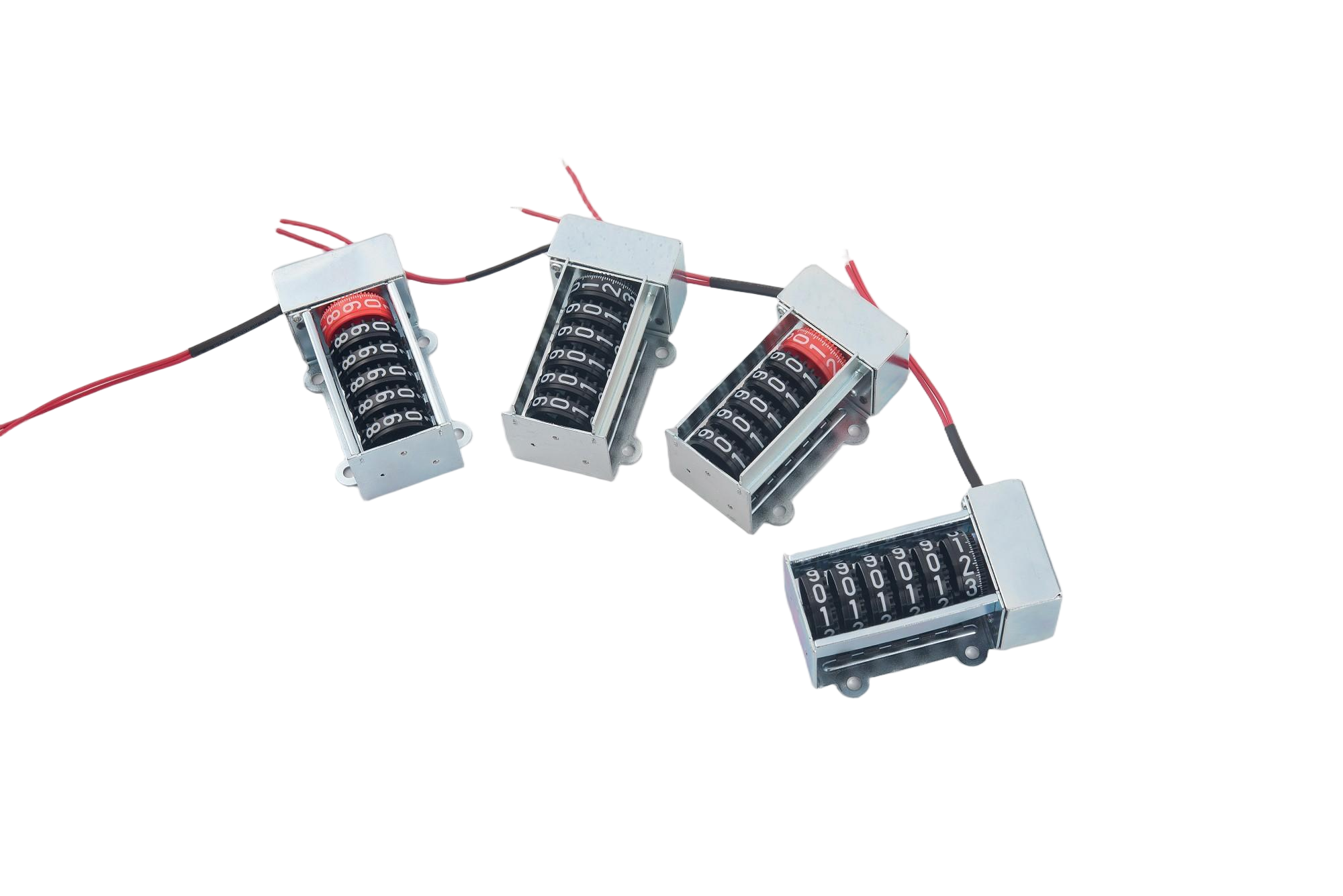

Display digits: 6 digits (5 black + 1 red) / 7 digits (6 black + 1 red)
Gear ratio: 200:1
Rated pulse voltage: 2.5V–5.5V
Pulse width: ≥40ms
Max driving frequency: ≤12 pulses/second
DC resistance (20℃): 460Ω±50Ω
Operating temperature: -25℃～65℃
Relative humidity: ≤80%
Magnetic shielding: 0.8mm metal shield, resistant to 100mT±20mT magnetic field
Mechanical life: ≥2×10⁷ driving pulses
Lead wire: 90±5mm total length, 4±1mm stripped length
